AMD EPYC™ 7001 Server Prozessor
Technische Daten
| Codename: | Naples |
|---|---|
| Socket: | Socket SP3 |
| Multi-Core-CPU: | Octa-Core, Multi-Core |
| CPU-Core | Zeppelin B2, Zeppelin B2 |
| Protokoll: | PCIe 3.0 x4 |
| FSB-Takt: | 100 MHz |
| Standard-Takt: | 2000 - 2400 MHz |
| Turbo-Takt: | 2700 - 3200 MHz |
| L1-Cache Instr.: | 8 - 32 x 64 kB |
| L1-Cache Daten: | 8 - 32 x 32 kB |
| L2-Cache: | 8 - 32 x 512 kB |
| L3-Cache: | 32768 - 65536 kB |
| Transistoren: | 19200 Mio. |
| Core-Fläche: | 768 mm˛ |
| Fertigung: | 14 nm |
| Leistungsaufnahme: | 120 - 180 Watt |
| Speicherbandbreite: | 512 Bit Octo-Channel |
| Speichercontroller: | DDR SD-RAM DDR4-2400 - DDR4-2666 |
| Befehlssätze: | MMX, SSE1 - 4.2, AES, AVX, AVX2, BMI, BMI1+ BMI2, SHA, F16C, FMA3, AMD64, SMT, EVP, AMD-V, Precision Boost, SMAP, Secure-Root-of-Trust, Secure Run technology, Secure memory encryption, Secure Move tec |

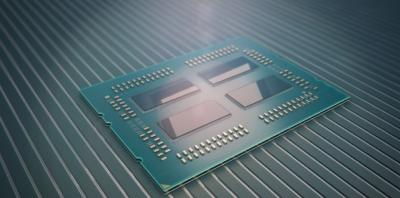

AMD EPYC Vorderseite DIE Rendering

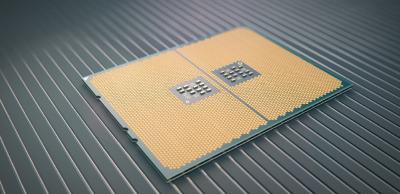

AMD EPYC Socket Rendering
AMD EPYC™ 7001 Server Prozessoren
| APU-Modell: | L2-Cache: | L3-Cache: | x86-Takt/Turbo: | Technologie: | TDP: | Release: | Info: |
|---|---|---|---|---|---|---|---|
| EPYC 7601 | 32 x 512 kByte | 64 MByte | 2200 / 3200 MHz | 14 nm | 180 Watt | 20.06.2017 |  |
| EPYC 7551P | 32 x 512 kByte | 64 MByte | 2000 / 3000 MHz | 14 nm | 180 Watt | 20.06.2017 | |
| EPYC 7551 | 32 x 512 kByte | 64 MByte | 2000 / 3000 MHz | 14 nm | 180 Watt | 20.06.2017 | |
| EPYC 7501 | 32 x 512 kByte | 64 MByte | 2000 / 3000 MHz | 14 nm | 155 Watt | 20.06.2017 | |
| EPYC 7451 | 24 x 512 kByte | 64 MByte | 2300 / 3200 MHz | 14 nm | 180 Watt | 20.06.2017 | |
| EPYC 7401P | 24 x 512 kByte | 64 MByte | 2000 / 3000 MHz | 14 nm | 155 Watt | 20.06.2017 | |
| EPYC 7401 | 24 x 512 kByte | 64 MByte | 2000 / 3000 MHz | 14 nm | 155 Watt | 20.06.2017 | |
| EPYC 7351P | 16 x 512 kByte | 64 MByte | 2400 / 2900 MHz | 14 nm | 155 Watt | 20.06.2017 | |
| EPYC 7351 | 16 x 512 kByte | 32 MByte | 2400 / 2900 MHz | 14 nm | 155 Watt | 20.06.2017 | |
| EPYC 7301 | 16 x 512 kByte | 32 MByte | 2200 / 2700 MHz | 14 nm | 155 Watt | 20.06.2017 | |
| EPYC 7281 | 16 x 512 kByte | 32 MByte | 2100 / 2700 MHz | 14 nm | 155 Watt | 20.06.2017 | |
| EPYC 7251 | 8 x 512 kByte | 32 MByte | 2100 / 2900 MHz | 14 nm | 120 Watt | 20.06.2017 | |
